Components & Tanks for Ross Mixers

We currently have in stock used tanks for Ross mixers in the following sizes:

1, 2, 4, 10, 40 and 200 gallons.

We also have dust shields for 4 and 10 gallon Ross mixers..

We can fabricate new tanks and discharge presses as well. Inquire for details

Ross

LDM 1 Quart Double Planetary Mixer

Stock #

UR1QAC01

Ross Model LDM-1QT Vacuum, Jacketed Double planetary mixer, stainless steel
construction, Sanitary, 1/2 to 1 quart mixing capacity, 1 quart total capacity, stainless
jacketed mix can with stainless steel jacket, hand crank lift, and motor, Serial#54054

This unit has been sold but we will getting more soon.

Ross

DS-1/2 Gallon Discharge Press

Stock #

URP1/2HN01

0.5 Gallon Ross DS-1/2 Discharge Press

Ross Mixer

PVM-1 Gallon

Stock # UR1AC02

• Ross Mixer Model PVM-1 gallon Versamix
• Designed for operation under vacuum
• Agitators include a 3-wing anchor, a high speed disperser and a mixer-emulsifier
• Each agitator is independently controlled with a VFD
• Mix can is jacketed, is fitted with a thermocouple through the tank wall and a bottom flush ball valve
• Contact parts are stainless steel
• Mounted on a painted steel bench

OLSA Vacuum Processor

MINILAB 2G, 2.7 LITERS

STOCK # UO150AI01

NEW Olsa “Minilab” Model 2G Laboratory Vacuum Mixing and Homogenizing System
with a maximum recommended working capacity of 2.7 liters, and a full holding capacity
of 3.5 liters. Unit to include the following features and specifications:

AGITATING AND HOMOGENIZING SYSTEM:

Agitation system for mixing and homogenizing medium to high viscosity formulations
consists of one top-entering planetary agitators and one bottom entering homogenizingrotor/stator
turbine.

VACUUM VESSEL:

Stainless steel type 304L removable mixing vessel with hemispherical bottom.
Equipped with bayonet-type vessel locking system and quick-connect coupling of
the high speed agitator for ease of vessel removal.

Vessel jacket for recirculation of (optional) heating and cooling media. Includes
quick-disconnect fittings.

Vessel mounted product temperature probe.

VACUUM COVER:

Vessel Cover manufactured of Plexiglas for viewing the batch during processing.
Motor and cover assembly are hinged and can be tilted for ease of access to the
vessel and its contents. The cover includes:

Silicone cover gasket embedded in the cover for vacuum sealing.

Flange for planetary agitator.

Connection with valve for vacuum.

Connection with vacuum gauge and vacuum-breaking valve.

Connection with valve for vacuum addition of liquid ingredients.

VACUUM SYSTEM:

Air-ejector vacuum system installed in the mono-block cabinet.

CONTROLS:

Controls and instrumentation panel located integrally in mono-block cabinet to include:

Two (2) AC variable frequency inverter drives for variable speed control of the
planetary agitator and homogenizing turbine.

Start / Stop pushbuttons and speed control potentiometer for planetary agitator.

Digital speed readout for planetary agitator.

Start / Stop pushbuttons and speed control potentiometer for homogenizing turbine.

Digital speed readout for homogenizing turbine.

Digital product temperature readout.

Input Voltage: 220 volts, 3 phase, 60 Hz.

Ross

LDM 1 Gallon Double Planetary Mixer

Stock #

Sold. Contact us, we can build you a new one.

• Used Ross mixer, model LDM-1 Gallon, double planetary mixer
• Mixing capacity of 1 pint to 3-1/2 quarts
• Designed for operation under vacuum
• Sanitary Stainless Steel construction
• Mix can is made from stainless steel with a stainless steel jacket
• Driven by a 1 HP., Variable speed drive
• Hand tilt design
• Mixer is mounted on a portable base with casters

Ross Powermix Mixer

Model: PD-2 Gallon

Stock # UR2AK01

USED ROSS HIGH SHEAR DOUBLE PLANETARY MIXER, MODEL PD-2 GALLON, POWERMIX WITH TWO AGITATORS, ONE LOW SHEAR AND ONE HIGH SPEED DISPERSER. MIXER HAS T-304 STAINLESS STEEL CONTACT PARTS. 1/3HP EXPLOSION PROOF HYDRAULIC LIFT DRIVE. 1HP 70-240 RPM VARIABLE SPEED PLANETARY DRIVE. 2HP 1140-3420 RPM 3/60 460 VOLT VARIABLE HIGH SPEED DISPERSER DRIVE. ELECTRIC HYDRAULIC LIFT CHANGE CAN REMOVAL DESIGN. FEATURES VACUUM HOOD ON BOWL. JACKET CHANGE CAN. PREVIOUSLY USED IN A LABORATORY.

Ross

LDM-2 Gallon Double Planetary Mixer

Stock #

• Used Ross double planetary mixer, model LDM-2 Gallon

• Comes with 2 mix cans

• Designed for operation under vacuum, comes with vacuum pump.

• Mounted on a steel bech with casters.

• Older unit but nice looking. A great example of the longevity of Ross equipment!

Ross

LDM-2 Gallon Double Planetary Mixer

Stock #

UR2AC04

Description: Used Ross LDM-2 Gallon Double Planetary Mixer

• Used Ross double planetary mixer, model LDM-2 Gallon

• Comes with 1 jacketed stainless steel mix can

• Designed for operation under vacuum and it comes with vacuum pump.

• Motor runs on a standard 110 Volt, 3 phase, 60 Hz power and plugs into a wall outlet. Unit has variable speed device with a knob to adjust the speed.

• Mounted on a steel bech with casters.

• Older unit but nice looking. A great example of the longevity of Ross equipment!

Ross Mixer

PD 2 Gallon

Stock # UR2AC01

USED ROSS MODEL PD-2 GALLON POWERMIX MIXER, DESIGNED FOR OPERATION UNDER VACUUM. EQUIPPED WITH A STANDARD PLANETARY BLADE AND A HIGH SPEED DISPERSER STAINLESS STEEL CONTACT PARTS,BOTH AGITATORS HAVE A VARIABLE FREQUENCY DRIVE TO CONTROL THE SPEED. COMES WITH ONE TANK MADE OF STAINLESS STEEL WITH A STAINLESS STEEL JACKET.

Ross Mixer

VMC-2 Gallon

Stock # UR2AC02

Ross Discharge Press Model DS-2

Stock #

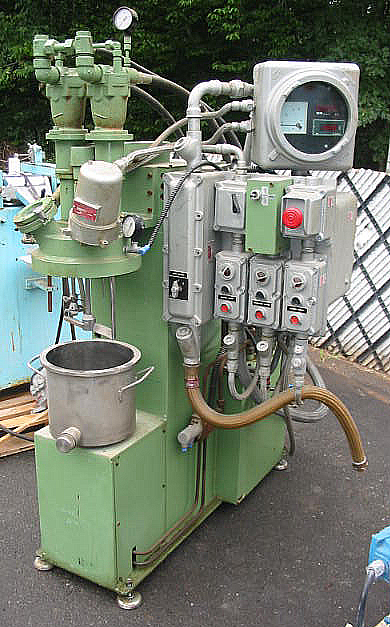

Turello Dual Shaft Mixer Model TMD-10 Litres (Approx. 2.5 USGallons)

Stock #

Wanted: Your Surplus Ross Mixers

We rebuild, click here to see typical examples of the work we do.

Ross Mixer

LDM-4 Gallon

Stock # UR4ACD05

Ross LDM-4 Gallon double planetary mixer.

• Ross LDM-4 Double Planetary Mixer
• Stainless Steel contact parts

• Unit is desiegned for operation at atmospheric condition

• 1 quart to 4 gallon capacity

• Dust cover and drives are raised by hand tilting

• Dust cover has a charging chute

• Mixer comes with one mix can

Ross Mixer

LDM-4 Gallon

Stock # UR4AC02 & UR4AC03

Just purchased: Two Ross LDM-4 Gallon double planetary mixers.

• Ross LDM-4 Double Planetary Mixer
• Stainless Steel contact parts

• Unit is fitted with a control pannel

• 1 quart to 4 gallon capacity

• Vacuum cover and drives are raised by a hydraulic lift

• designed for operation under vacuum

• Each mixer has one mix can with stainless contact parts. One has a non-jacketed tank and the other has a stainless steel jacketed tank.

Ross Mixer

LDM-4 Gallon

Stock # UR4AC04

With Archem Press for Ross 4 Gallon Mixers

Model: DS-4 Gallon

Stock # NA4AM01

Ross LDM-4 Gallon double planetary mixers.

• Ross LDM-4 Double Planetary Mixer being refurbished
• Stainless Steel contact parts

• Unit is fitted with a control pannel

• 1 quart to 4 gallon capacity

• Vacuum cover and drives are raised by a hydraulic lift

• designed for operation under vacuum

• Mixer will have one new mix can designed for use with a discharge press. Mix can has stainless contact parts with a stainless steel jacket and a cove cut plug valve.

Fryma

Model: VME-20 25 liter Triple-motion Vacuum Mixer

Used Fryma, model Fryma VME-20, 25 liter Triple-motion Vacuum Mixer

INOUE SEISAKUSHO DOUBLE PLANETARY MIXER

MODEL PLM-30 LITERS APPROX. 7.9 US Gallons

Stock # UIS30AD01

• Used Inoue Seisakusho Double Planetary Mixer, model PLM-30 Liters, approximately 7.9 US Gallon
• Stainless Steel contact parts are highly polished
• Stainless Steel planetary gearbox

• Two rectangular planetary mixing blades
• Mix can is made from stainless steel with a carbon steel jacket
• Designed for operation under vacuum
• Vacuum cover and drives are raised by ahydraulic lift

• Vacuum hood is fitted with two very large sight ports

•Unit has been test run and works well.

Click here to view a video of this mixer running.

Ross Double Planetary Mixer

HDM-10 Gallons

Stock #

UR10AC02

• Dust cover and drives are raised by an air over oil hydraulic lift

• Used Ross HDM-10 Double Planetary Mixer
• Stainless Steel contact parts

• Unit is fitted with mechanical variable speed drive

• Designed for operation at atmospheric
• Two rectangular profile mixing blades
• Up to 10 gallon mix capacity

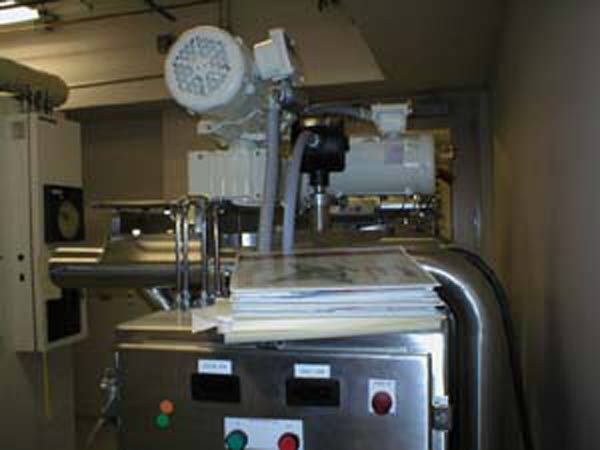

Jaygo Saturn

Nauta Type Mixer

JN-FF-5-MO

45 Liters

Another kind of planetary mixer with its own advantages. This mixer will perform better than a double planetary mixer giving much better and faster top to bottom mixing than a double planetary mixer. I will also mix a a much smaller relative partial batch. Discharge is easier with its conical shape and emptying can be accelerated by reversing the rotation of the auger to puch the product down and out the bottom outlet.

Vacuum Planetary Mixer with approximately 12 US Gallon Capacity:

This may be a good alternative to a double planetary mixer.

Jaygo Saturn Stainless Steel Conical Screw Mixer
Manufacturer Jaygo Manufacturing Inc
Year 1999
Model FF-5-MO
Serial Number 2678
Capacity Size 45 L
Current Application Out of Service
Spare/Change Parts N
Manual Available No
Shipping Weight 750 LBS
Runs on 230 volts, 3 phase, 60 Hz.

Formerly used by a pharmaceutical company.

Ross Double Planetary Mixer

DPM-10 Gallons

Stock #

UR10AC04

• Ross HDM-10 Double Planetary Mixer, recent model
• Stainless Steel contact parts

• Unit comes with a control pannel

• Up to 10 gallon mix capacity

• Vacuum cover and drives are raised by an air over oil hydraulic lift

• designed for operation under vacuum
• Two HV mixing blades for improved top to bottom mixing with highly viscous products

• Unit is fitted with a scraper arm with wiper

• One mix can with stainless contact parts with a stainless steel jacket, fitted with a thermocouple through the side and a flush ball valve on the bottom.

• There is an additional thermocouple that rotates in the product zone
• designed for operation under vacuum

Ross Double Planetary Mixer

HDM-10 Gallons

Stock #

UR10ACDM01

• Ross HDM-10 Double PlanetaryMixer.
•
• Mixer base is enclosed and hydraulic lift area is enclosed with bellows

• Unit is fitted with a control pannel

• Up to 10 gallon mix capacity

• Dust cover and drives are raised by an air over oil hydraulic lift

• designed for operation at atmospheric pressure
• Mix can is jacketed, has a 2" bottom flush ball valve and is fitted with a thermocouple
• Unit has been test run and is in good operating condition

Click here to see a video of the unit in operation.

Ross Powermix Double Planetary Mixer

PD-10 Gallons

Stock #

UR10AC01

YT

• Used Ross PD-10 Double Planetary Mixer
• Stainless Steel contact parts
• One rectangular profile mixing blades

• One high speed disperser
• Up to 10 gallon mix capacity
• designed for operation under vacuum
• vacuum cover and drives are raised by an air over oil hydraulic lift

Ross Versamix Tripple Shaft Mixer

PVM-10 Gallons

Stock #

UR10JM01

• Used Ross PVM-10 Gallon Tripple Shaft Mixer
• Stainless Steel contact parts
• One three blade anchor agitator with 3 HP drive

• One high speed disperser with 3,480 RPM, 5 HP motor

• One rotor/stator mixer-emulsifier with 3,450 RPM, 1.5 HP motor
• Up to 10 gallon mix capacity
• designed for operation under vacuum
• vacuum cover and drives are raised by an air over oil hydraulic lift

• Motors run on 208-230/460 volts, 3 phase, 60 Hz

Ross Double Planetary Mixer

HDM-25 Gallons

Stock #

UR25ACL01

Description:

This unit has been refurbished by the owner and never used:

• Used Ross HDM-25 Double Planetary Mixer
• Stainless Steel contact parts

• Drive has a single speed 10 hp motor running on 230-460 volts, 3 phase, 60 HZ.
• Two rectangular profile mixing blades

• Unit is fitted with the support for a scraper arm, scraper arm missing
• 25 gallon mixing capacity

• Unit comes with 1 stainless mix can with steel jacket and a bottom Flush Ball Valve. Two additional mix cans are available at an additional cost.

• Nice clean unit from a dental products company

Click here to see the first video of this mixer running.

Click here to see the second video of this mixer running.

Lee Trimix Mixer

100 Liter

Stock #

UL100N01

One (1) Used Lee Model D12T with a maximum recommended working capacity of 100 liters and a full holding capacity of 120 liters. Unit to include the following features and specifications:

• Portable vacuum mixing and homogenizing system with air/water cover tilting system to raise the agitators from the vessel.
• All product contact parts to be type 316L stainless steel polished to a 32 – 40 Ra on the inside of the vessel and cover

•Unit designed for full vacuum operation and internal pressure to 30 psig (2 BarG), at 260oF (126oC). Includes ASME code stamp and National Board registration.

• Outer anchor agitator with adjustable Teflon scraper blades, and internal counterrotating blades, driven at a speed range of 8 - 25 rpm by a 3 HP, 208 volt, 3 phase, 60 Hz, TEFC motor.
• Top-entering coaxial homogenizing turbine driven at 3600 rpm by a 5 HP, 208 volt, 3 phase, 60 Hz, TEFC motor.

• Two (2) AC variable frequency inverter drives for variable speed control of the counter-rotating agitators and the homogenizing turbinr.
Input Voltage: 208 volt, 3 phase, 60 Hz.

Ross Powermix Double Planetary Mixer

PDM-40 Gallons

Stock #

UR40AC01

• Used Ross PDM-40 Double Planetary Mixer
• Sanitary design with stainless Steel contact parts
• One rectangular profile mixing blades

• One high speed disperser
• Up to 40 gallon mix capacity
• designed for operation under vacuum
• vacuum cover and drives are raised and lowered by a lift system

• Comes with two jacketed mix cans suitable for use with a discharge press
• Comes a discharge press
• Comes with a heat control system

Ross Double Planetary Mixer

DPM-40 Gallons

Stock #

UR40AC02

Description:

This unit is very nice and a more recent model:

• Used Ross DPM-40 Double Planetary Mixer
• Stainless Steel contact parts

• Used is designed for operation under vacuum

• Drive has a single speed 15 hp motor running on 230-460 Volts, 3 phase, 60 Hz.
• Two rectangular profile mixing blades

• Unit is fitted with a scraper arm assembly
• 40 gallon ing capacity

• Unit comes with 1 stainless mix can with steel jacket and a bottom Flush Ball Valve. Additional mix cans are available at an additional cost.

OLSA Vacuum Processor

MACEF 150 LITERS

LIST # UO150AO1

Ross Vacuum High Viscosity Mixer Reactor with Double Hellical Agitator

HSM-40 Gallons

Stock # UR40ACO2

1-USED ROSS APPROX. 40 GALLON VACUUM MIXER REACTOR EITH DOUBLE HELLICAL AGITATOR. UNIT HAS AIR/OIL LIFT MECHANISM TO RAISE AND LOWER THE DRIVE TO ALLOW THE REMOVAL OF THE MIX TANK. DESIGNED FOR OPERATION UNDER VACUUM & A POSITIVE PRESSURE OF 35 PSI @ 350°F, JACKET MAXIMUM ALLOWABLE WORKING PRESSURE 100 PSI @ 350°F. MINIMUM DESIGN METAL TEMPERATURE 0°F AT 100 PSI. ROSS METAL FABRICATORS S/N 11801-1, national board 463, CRN 15925. STAINLESS STEEL CONTACT PARTS. JACKETED HAS PROVISION FOR THERMOCOUPLE, INSULUATED WITH SHEATHING.

This can be a substitute for a double planetary mixer, this unit will handle many of the double planetary mixer applications and perform better in particular when top to bottom mixing is critical, this design can do it faster. Last used on an 800,000 cP product.

In-Line Ross High Shear Mixing System

Ross HSM-425

25 HP

Stock # URIL25AC01

Description:

One only used Ross In-Line Ross High Shear Mixing System comprised of an in-line Ross Mixer Emulsifier, model HSM-425, driven by a 25 HP motor.  The system includes a stainless steel tank which is attached to the in-line high shear mixer. Rated for vacuum and pressure with.  The powder is added to the liquid stream and circulated through the tank and high-shear mixer in a loop and part of the stream is diverted away from the loop and into the next step of your process.  The unit can also be operated in a closed loop batch system.  This 25 HP unit has a flow through rate of 350 USGPM based on water.

Will sell in-line mixer-emulsifier or the jacketed pressure vessel by itself.

HMX Jacketed Tank with Inverted Anchor Agitator

Stock # UH55ACO1

Description: Jacketed Mixing Tank with Inverted Anchor Agitator

One only used mixing tank as follows:

• Approximately 55 gallons capacity
• Approximately 26" ID X 26.25" Deep
• Stainless steel contact parts and jacket
• Bottom Entering agitator. The shaft is enclosed inside a pipe with the agitator mounted at the top, thus eliminating the need for a submersed seal. There is a seal at the top end of the shaft. The agitator is an inverted anchor hanging from the top of the shaft.
• Seal between the top end of the shaft and pipe enclosure
• Very thick wall on tank and jacket
Machined tope flange
• O-Ring chord grooves on lid flange to create a seal
• Approximately 3/16" thick lid with approximately 1/2" thick flange
• Clamps t secure removable lid
• 1 hp motor with reducer, runs on 460 volts, 3 phase, 60 Hz and aC Tech drive
• Looks like it could hold vacuum with the heavy gauge construction and sealing features but no official rating on the device

Ross Mixer

HDM-80 Gallons

Stock # UR80AO1

Buy this one at a discounted price.

Description:

One (1) used Ross Model HDM-80 Double Planetary Mixer with a working capacity of 80 gallons. Designed for operation under atmospheric condition, non-vacuum. This is an older machine in good working condition.

The owner is motivated to sell quickly, they need to empty a building.

Ross Powermix High Shear Planetary Mixer & Discharge Press

PDM-100 Gallons

Stock #

UR100AC01

Available: June 1, 2013

• Used Ross PDM-100 Powermix, Low & Variable High Shear Planetary Mixer
• Sanitary design with stainless Steel contact parts from a neutraceutical application
• One rectangular profile mixing blades

• One scraper blade

• One high speed disperser
• 30 to 100 gallon working capacity, 115 gallon full holding capacity
• designed for operation under vacuum
• vacuum cover and drives are raised and lowered by a lift system

• Comes with two jacketed mix cans, with a 2" Flush Ball Valve, suitable for use with a discharge press
• Comes a discharge press
• Comes with a touch screen control system

Ross Versamix

Tripple Shaft Mixers

Model: Custom PVM-100 with +/- 200 Gallon capacity

Three units available

Stock #

UR190AC01, UR190AC02, UR190AC03

Three units available

• Used Ross Versamix Tripple Shaft Mixer based on PVM-100 with extended mix tank providing approximately 190 Gallon working capacity. S/N 52829-1, 52829-2 & 52829-3
• Stainless Steel contact parts

• Designed for operation under vacuum
• One three blade anchor agitator driven by a 10 HP, 230/460 Volt motor

• One high speed disperser driven by a 10 HP, 230/460 Volt motor

• One rotor/stator mixer-emulsifier high shear mixer driven by a 10 HP, 230/460 Volt motor
•
• designed for operation under vacuum and pressure
• vacuum cover and drives are raised by an air over oil hydraulic lift

• Comes with one jacketed mix can with insulation and stainless sheething

OLSA Vacuum Processor

MACEF 500 LITERS

STOCK # UO500FO01

DESCRIPTION: MACEF 500 LITER OLSA DOUBLE MOTION VACUUM MIXER, 316L S/S

One (1) Unused 500 liter Olsa double shaft vacuum mixer, model Mobiliti 500, with model MACEF 500L mixer, 316L stainless steel construction, 580 liter total, 500 liter working capacity, rated 36 psi and full vacuum at 156 c
internal, 304 stainless steel jacket rated 65 psi at 156 c, 4" sight glass, (2)3", 2.5", (2)2", (5)1.5" top ports, 1.5" bottom outlet with flush type valve, internal mirror polish, vessel on 4 stainless steel legs, double motion agitator with outer anchor agitator with teflon scrapers driven by 3 kw, 460 volt tefc motor, 5-30 rpm output speed, inner agitator driven by 2.2 kw, 460 volt tefc motor, 15-82 rpm output speed, provision for bottom mounted homogenizer less system, (2) AC VFD inverters for inner and outer agitators, mechanical seals with viton o-rings, 18 kw Mokon DT Series duratherm water temp circulation system, rated 25 gpm with .75 hp pump, CIP circulation system with
10 hp Fristam pump, model FPR-742, rated 60 gpm, with OlsaComp 1 controls with Allen Bradley PLC controller and motor VFD controllers. Heater, CIP system and controls mounted on stainless steel Monoblock Docking station that MACEF 500L vessel docks onto, machine serial# 09-018, vessel serial# 4959, national board# 66, new 2009, factory tested in January of 2010 and Unused.

Bowers High Viscosity Mixer

100 Imperial Gallon (125 US Gallon) Single Shaft Vacuum/Pressure Mixer

Stock # UB125AC01 & UB125AC02

Description:

Two used Bowers vacuum/pressure rated mixer with a single shaft agitator designed specifially for viscous products blending and reacting. Last used to make Reverse Osmosis Membranes. The mixer has a hydraulic lift system to raise the agitator out of the removable mix tank which is mounted on casters and it has a 3" Flush Ball Valve located on the bottom and vertical baffles fixed to the wall. The tank has a capacity of 100 Imperial Gallon or 125 US Gallons. The tanks are rated for 12 PSIG to -14.7 PSIG internal pressure with a jacket rated for 50 PSIG AT 80 C. The agitator has three impellers each with 3 very wide blades suitable for moving viscous products. Contact parts are 316LSS with a 150 grit polish.

This can be a substitute for a double planetary mixer, this unit will handle many of the double planetary mixer applications and perform better in particular when top to bottom mixing is critical, this design can do it faster. Last used on an 800,000 cP product.

Ross Mixer

DPM-150 Gallons

Ross Press DIS-150

Stock # UR150AC01

This model replaces the Ross HDM-150

Description: One (1) Unused Ross double planetary mixer, model DPM 150, 150 gallon working capacity, 316L stainless steel product contact surfaces including, mixing can, vacuum hood, planetary gear box and beaters, HV mixing blades driven by 30 hp motor drive with VFD variable speed controller, approximately 6-24 rpm arm speed, 5-22 rpm orbit speed, vacuum design with cover, (1) 44" diameter x 28" deep 316L stainless steel vacuum rated mixing can on casters with 4" bottom outlet, (1) 44" diameter x 28" deep 316L stainless steel vacuum rated jacketed mixing can on casters, 304 stainless steel jacket rated 15 psi with 4" bottom outlet, hydraulic lift and lower mechanism with 7.5 hp hydraulic pump with reservoir, all mounted on stainless steel base with stainless steel shroud. One (1) used mix can tug, electrically operated, 1.28 hp, 4500# lift capacity, 3.2 MPH. One (1) used Ross press out station, model DIS 150, stainless steel construction with hydraulic pump and all controls, mixer serial# 106430, press serial# 106431, new 2007.

Ross Versamix

Tripple Shaft Mixers

Model: Custom PVM-100 with +/- 200 Gallon capacity

Three units available

Stock #

UR190AC01, UR190AC02, UR190AC03

Three units available

• Used Ross Versamix Tripple Shaft Mixer based on PVM-100 with extended mix tank providing approximately 190 Gallon working capacity. S/N 52829-1, 52829-2 & 52829-3
• Stainless Steel contact parts

• Designed for operation under vacuum
• One three blade anchor agitator driven by a 10 HP, 230/460 Volt motor

• One high speed disperser driven by a 10 HP, 230/460 Volt motor

• One rotor/stator mixer-emulsifier high shear mixer driven by a 10 HP, 230/460 Volt motor
•
• designed for operation under vacuum and pressure
• vacuum cover and drives are raised by an air over oil hydraulic lift

• Comes with one jacketed mix can with insulation and stainless sheething

Ross Versamix

PVM-200 Gallons

Stock # UR200AC02

• Used Ross PVM-200 Dual Shaft Versamix
• 316Stainless Steel contact parts with a 140 grit polish

• Three wing anchor agitator with scrapers, driven by a10 hp XP variable speed drive
• Off center agitator with a 15 HP XP variable speed drive
• 200 gallon working capacity

•Unit comes with 1 mix can made from 316SS jacket

Ross Mixer

HDM-200 Gallons

Stock # UR200AC01

• Used Ross HDM-200 Double Planetary Mixer
• Stainless Steel contact parts

• Drive has a 30 hp motor
• Two rectangular profile mixing blades
• 200 gallon mixing capacity

•Unit comes with 2 stainless mix cans with steel jacket and a flush ball valve on the bottom.

• Nice clean unit

Myers Mixer

Model V

Approx 200 Gallons

Stock #

UM200AC01 & UM200AC02

Used Myers, vacuum dual shaft mixer with anchor agitator and high speed disperser agitator, approximately 200 US Gallon working capacity. Mixer is designed for operation under vacuum. There are two mixers, each with two mixing vessels and one discharge ram.

We are awaiting additional information.

Ross Mixer

PD-400 Gallons

Ross Press DS-400

Stock # UR400AC01

• Used Ross PD-400 High Shear Planetary Mixer
• Designed for operation under vacuum
• One rectangular profile mixing blade driven by a 50 HP, 460V/3/60HZ motor

• Two scraper blades

• One high speed disperser driven by a 75 HP, 460V/3/60HZ motor
• Up to 400 gallon mix capacity
• designed for operation under vacuum
• vacuum cover and drives are raised and lowered by a lift system

• Comes with two jacketed mix cans suitable for use with a discharge press
• Comes a discharge press
• Equipment was used for a viscous construction material and, according to the owner, it was in good working condition when it was removed from a plant about 5 or 6 years ago.

Bowers Mixer

Model:

Approx 625 US Gallons

Stock #

UB625AC01

Description: Used Bowers Vacuum Mixers

• Capacity: 500 Imperial Gallons / 625 US G
• Designed for mixing viscous products
• Pressure: Designed for operation under vacuum
• Tanks: Quantity of 9 Mix tanks, movable by a forklift
• Agitators: There are 3 agitators, a two-wing-anchor with scrapers, a high speed disperser and an auger for vertical mixing. up-pumping impellers, designed for viscous products
• Drives: Anchor driven by a 60 HP motor, Auger driven by a 40 HP motor and the High Speed Disperser is driven by a 100 HP motor. The motors operate on 575 volts, 3 phase, 60 Hz, they may be rewound to operate on 230/460 Volts or you can install a transformer.
• Materials: Product contact parts are stainless steel
• Agitators: The unit has a single shaft agitator with three 3-wide-bladed up-pumping impellers

Reynolds Industries Mixer

Capacity:

Approx 2,400 US Gallons

Stock #

URI2400AC01

Description: Used Reynolds Industries 2,400 Gallon Dual Shaft Vacuum Mixer with Additional Agitated Holding Tank

System Includes the following:

• 2,400 Gallon vacuum mixer with two agitators, a helical anchor and a a high speed disperser. The mixing vessel is fitted with a dimple jacket rated for 130 PSI. Contact parts and jacket are made from stainless steel.
• 2,400+ Gallon Vacuum and agitated holding tank with a helical anchor, with stainless steel contact parts.
• Transfer pumps
• Controls
• Last used for making under floor adhesive

Need a break? Click here to view an entertaining video

Jim, click the following for your inspection videos: Video 1Video 2 Video 3
