I buy used mixers

I want to buy your surplus equipment.

Mixers, blenders, presses, reactors, production & lab equipment.

Deal with a Mixer Expert

When you deal with UsedRossMixers.com you are dealing with a mixer expert. I am Rénald A. Richer, a professional engineer with two decades of experience in mixing technology and the owner of UsedRossMixers.com and of Archem Process Equipment LTD. I have worked for Lightnin, represented Chemineer, Kenics, Ross, Ekato, Stelzer and I am the inventor the world's best static mixer. I alo offer new custom made equipment. When you need more than5just hardware, you will see the difference I can make.

Listed in increasing size order from 1 Quart to 550 gallons.

Partial listing updated March 16, 2021. We have more to offer not listed here.

Brand

Model

Stock #

Photos

&

Videos

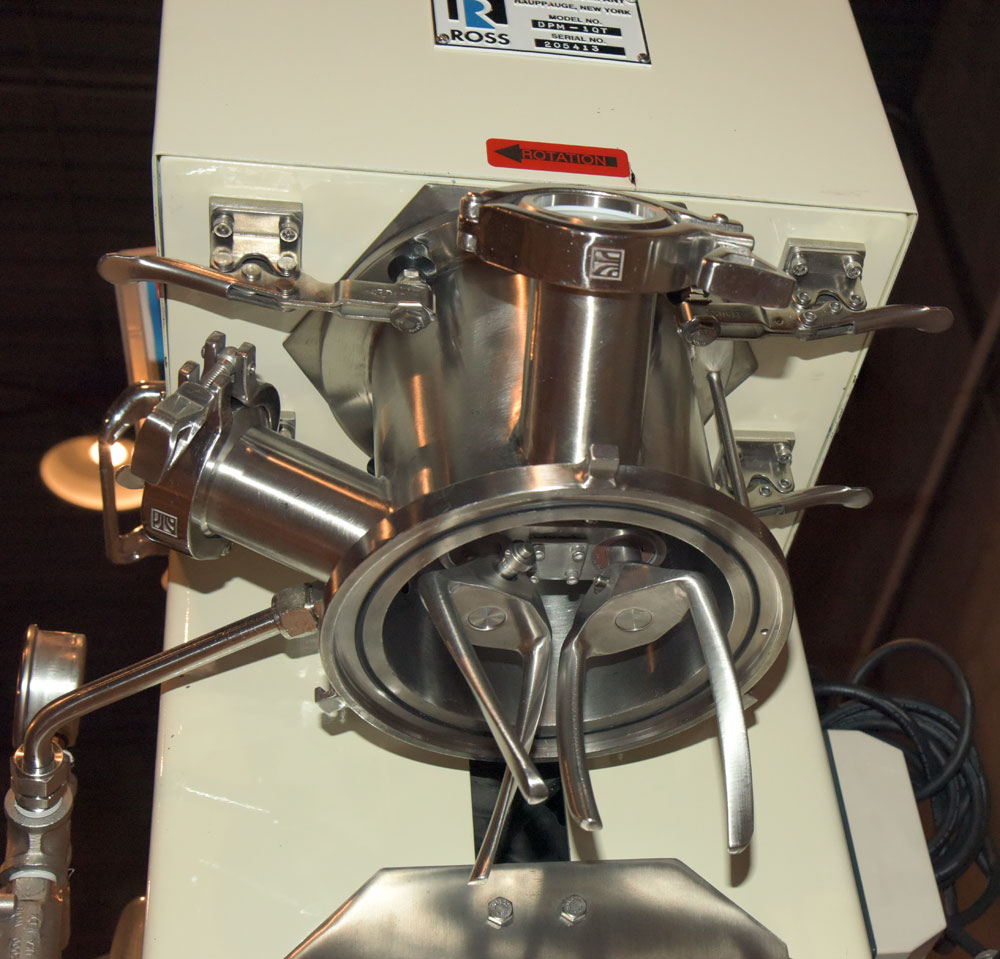

Ross Mixer

DPM-1QT

Stock # UR1QTAC01

IN STOCK AS OF MARCH 16, 2021

- Vacuum hood is fitted with 2 sight/charging ports.

- Contact parts are made of stainless steel.

- Fitted with two with Standard Rectangular agitator blades.

- Agitator is controlled by an ACTech Variable Frequency Drive.

- Tank is fitted with a stainless steel jacket and a side entering thermocouple.

- Drive system and agitators are raised and lowered by a hydraulic lift.

- Mounted on a painted steel bench with casters.

- Prior use is with a pharmaceutical company.

Ross Mixer

DPM-1GALLON

Stock # UR1GAC01

SOLD, WE NEED ANOTHER UNIT.

Used Ross Double Planetary Mixer, model DPM-1 Gallon with HV Blades

- Designed for operation under vacuum.

- Vacuum hood is fitted with 2 sight/charging ports.

- Contact parts are made of stainless steel.

- Fitted with two with HV BLADES, High Viscosity agitator blades.

- Fitted with a scraper arm assembly and a scraper along the bottom of one HV Blade

- Agitator is controlled by an ACTech Variable Frequency Drive.

- Tank is fitted with a stainless steel jacket and a side entering thermocouple.

- Drive system and agitators are raised and lowered by a hydraulic lift.

- Mounted on a painted steel bench with casters.

- Prior use is with a pharmaceutical company.

Mix can for Ross Mixer

PD-1/2 Gallon

Stock # UR1/2AC01

IN STOCK AS OF MARCH 16, 202

Used mix can only for Ross Powermix, PD-1/2 Gallon with Press, Model DS-1/2 Gallon

SYMEX

5 LITER LAB PROCESSOR

STOCK # US5AD01

IN STOCK AS OF MARCH 16, 2021

Used Symex 5 Liter Laboratory Vacuum Mixing and Homogenizing System

Unit to include the following features and specifications:

AGITATING AND HOMOGENIZING SYSTEM:

Agitation system for mixing and homogenizing medium to high viscosity formulations
consists of one top-entering centrally located agitator and one top entering homogenizing rotor/stator turbine.

VACUUM VESSEL:

5 Litet Stainless steel removable mixing vessel with a flat bottom. Designed for operation from -1 to +2 Bars

Vessel jacket is designed for ab temperature of 151 C and 6 Bars. The unit has an integral hot water heating unit.

VACUUM COVER:

Vessel Cover manufactured of stainless steel.
Agitator and cover assembly are raised and lowered by an integral lift system for the removal of and ease of access to the
vessel and its contents. The cover includes:

Cover gasket embedded in the cover for vacuum sealing.

Flange for central agitator.

Flange for mounting optional homogenising agitator and for product addition.

Sight port witnh wiper.

Cover fitted with light.

Connection for vacuum.

VACUUM SYSTEM:

Air-ejector vacuum system installed in the mono-block cabinet.

CONTROLS:

The control panel includes temperature controls for both the product and jacket.

Start / Stop and speed control.

Fitted with an analog speed readout.

Input Voltage: 110 volts, 1 phase, 60 Hz.

Ross Powermix Mixer

Model: PD-2 Gallon

Stock # UR2AK01

USED ROSS HIGH SHEAR DOUBLE PLANETARY MIXER, MODEL PD-2 GALLON, POWERMIX WITH TWO AGITATORS, ONE LOW SHEAR AND ONE HIGH SPEED DISPERSER. MIXER HAS T-304 STAINLESS STEEL CONTACT PARTS. 1/3HP EXPLOSION PROOF HYDRAULIC LIFT DRIVE. 1HP 70-240 RPM VARIABLE SPEED PLANETARY DRIVE. 2HP 1140-3420 RPM 3/60 460 VOLT VARIABLE HIGH SPEED DISPERSER DRIVE. ELECTRIC HYDRAULIC LIFT CHANGE CAN REMOVAL DESIGN. FEATURES VACUUM HOOD ON BOWL. JACKET CHANGE CAN. PREVIOUSLY USED IN A LABORATORY.

Ross

LDM-2 Gallon Double Planetary Mixer

Stock #

IN STOCK AS OF MARCH 16, 2021

• Refurbished Ross double planetary mixer, model LDM-2 Gallon

• Comes with one mix can, additional ones available.

• Designed for operation under vacuum

• Driven by a a mechanical variable speed drive

• Mounted on a steel bech with casters.

• Older unit but nice looking. A great example of the longevity of Ross equipment!

Ross Discharge Press Model DS-2

Stock #

Discharge press for use with Ross 2 gallon mix cans suitable for use with a discharge press.

Photos upon request

Wanted: Your Surplus Ross Mixers

We rebuild, click here to see typical examples of the work we do.

Archem Press for Ross 4 Gallon Mixers

Model: DS-4 Gallon

Stock # NA4AM01

IN STOCK AS OF MARCH 16, 2021

• New Archem discharge press for use with either Ross or Archem 4 gallon mixers.

Scott Turbon Double Planetary Mixer

4 Gallons

Stock #

UST5AC01

IN STOCK AS OF MARCH 16, 2021

Used Scott Turbon Double planetary mixer with discharge press:

- 4 gallon working capacity

- Designed for operation under vacuum

- Change can design.

- Comes with a flat bottom tank and a cone bottom tank.

- Tank is fitted with a stainless steel jacket, a discharge valve.

- Comes with a special cart to hold & move the tanks

Click to see Mixer Video 1

Click to see Mixer Video 2

Ross Versamix Tripple Shaft Mixer

PVM-10 Gallons

Stock #

UR10AC02

IN STOCK AS OF MARCH 16, 2021

Description: Ross Versamix Triple Shaft Mixer Model PVM-10 Gallon

• Used Ross Versamix, model PVM-10 Gallon, triple shaft mixer
• Designed for operations under vacuum
• Fitted with a 3-wing anchor agitator with scraper blades to wipe the mix can side and bottom
• Fitted with a High-Speed disperser
• Fitted with rotor-stator type mixer-emulsifier
• Vacuum cover is raised and lowered by an air over oil hydraulic lift system.
• The vacuum cover is fitted with two sight-charging ports and a vacuum port with vacuum gauge.
• The mix can is jacketed and pressure for 50 PSI.
• The control panel has on/off buttons for each agitator, a main power emergency shut off
• Prior use was for making personal care products.
You are welcome to come to inspect this mixer in our warehouse in London, Ontario, Canada.

.

Ross Double Planetary Mixer

HDM-10 Gallons

Stock #

UR10ACDM01

IN STOCK AS OF MARCH 16, 2021

• Ross HDM-10 Double PlanetaryMixer.

• Mixer base is enclosed and hydraulic lift area is enclosed with bellows

• Unit is fitted with a control pannel

• Up to 10 gallon mix capacity

• Dust cover and drives are raised by an air over oil hydraulic lift

• designed for operation at atmospheric pressure
• Mix can is jacketed, has a 2" bottom flush ball valve and is fitted with a thermocouple
• Unit has been test run and is in good operating condition

Click here to see a video of the unit in operation.

Ross Powermix Double Planetary Mixer

PD-10 Gallons

Stock #

UR10AC01

IN STOCK AS OF MARCH 16, 2021

• Used Ross PD-10 Double Planetary Mixer
• Stainless Steel contact parts
• One rectangular profile mixing blades

• One high speed disperser
• Up to 10 gallon mix capacity
• designed for operation under vacuum
• vacuum cover and drives are raised by an air over oil hydraulic lift

Jaygo High Shear Planetary Mixer

MPVDV-60

Stock #

UJ45AC01

IN STOCK AS OF MARCH 16, 2021

Description:

Manufacturer: Jaygo
Model #: MPVDV-60
Year: 1999
S/N: 2669
Capacity: Approximately 45 litres or 11.8 US Gallons working capacity
Mix Cans: Two vacuum jacketed mix cans with centrally located flush ball valve and thermocouple. Each mix can has a removable base with casters.
Agitators: Two planetary agitators with pitched blades and one centrally located high speed disperser. There are two spare planetary agitator blades.
Scrpaer: There is a scraper arm assembly which is included but it is not show in the photos.
Spare Parts: Comes with a spare planetary gear box and some spare mixing blades.
Control Panel: Under construction due to conversion to 230/460 volts, includes new motors

Ross High Shear Planetary Mixer Explosion Proof for Hazardous Locations Class 1 Groups D & F

PD-40

Stock # UR40AC01

SOLD I WILL BUY YOURS

YOU ARE WELCOME TO COME INSPECT THIS MIXER IN MY WAREHOUSE IN LONDON, ONTARIO, CANADA

Description: Used 40 Gallon Ross PD-40 Gallon Powermix High-Shear Planetary Mixer

- One (1) Used 40 Gallon Ross PD-40 Gallon Powermix HighShear Planetary Mixer

- Motors & controls are suitable for use in hazardous location for Class 1, Groups D & F
- stainless steel product contact parts
- Comes with a standard rectangular mixing blade and a high-speed disperser shaft, the blade is currently missing.
- Vacuum hood, with multiple ports, a vacuum port and gauge as well as a light.
- Comes with one 40-gallon non-jacketed mixing can fitted with an outlet on front tank wall.
Mix cans mounted on casters.Controls are enclosed in two explosion proof boxes suitable for hazardous locations Class I, Groups D & F
- Drive is raised and lowered by an air over oil hydraulic lift with an air tank on the mixer base
- Prior use was at a chemical products company.
- Mixer has been test run and was reported to be in good operating condition.

IN STOCK AS OF MARCH 1, 2021

• Refurbished Ross HDM-40 Double Planetary Mixer
• Stainless Steel contact parts6

• Drive has a 30 hp motor
• Two rectangular profile mixing blades.
• 40 gallon mixing capacity

•Unit comes with one stainless mix can suitable for use with a discharge press, with a stainless steel jacket and fitted with a battom ball valve.

• Additional mix cans available

• We can build a new discharge press for use with the press quality mix cans.

Click here to see video of mixer running under vacuum

40 Gallon Double Planetary Mixer

with optional Discharge Press

Stock #

NHDPM40AC01

Description:

This mixer is being built for stock and is available for purchase & it can be customized.

- New 40 Gallon Double Planetary Mixer
- Stainless Steel contact parts including planetary gearbox

- Unit is designed for operation under vacuum
- Two standard rectangular profile mixing blades
- 40 gallon working capacity with bottom discharge near front edge
- Tank suitable for use with a discharge press

- Comes with one tank, additional tanks available

-Optional new discharge press

Under construction.

Used Bowers 50 US Gallon Vacuum Mixer with Single Shaft Anchor-Scraper

Stock #

UB50AC01

IN STOCK AS OF MARCH 16, 2021

Description: Used Bowers 50 US Gallon Vacuum Mixer with Single Shaft Anchor-Scraper

• Used Bowers Vacuum Paste Mixer, model 10 HP Paste Mixer

• Mixer was new in 2005 and used for only 2 to 3 years and the product manufacturing was dropped.

• Designed for a 15,000 centipoise product with a specific gravity of 1.8

• Product contact parts are made from type 304 Stainless Steel except for the polyethylene scrapers.

• 51 US Gallon working capacity, 75 US Gallon full holding capacity

• Fitted with an anchor agitator with scraper blades driven by a 10 HP, 575 Volts, 3 Phase, 60 Hz motor

• Agitator speed is controlled by a Variable Frequency Controller.

• Anchor agitator is of a quick release design.

• Change can design. Comes with a cart to hold and move the tank from and to the mixer and other locations.

• Comes with 1 mix can with a dished bottom and a 4 inch PMB flush ball valve, and lifting lugs for lifting with tank lifting assembly.

• Comes with tank lifting assembly to be used to lift the tank for manoeuvring above place of discharge like moulds by customer's overhead lifting device.

• Agitator drive and vacuum hood are raised and lowered by the air over oil hydraulic lift system.

Ross Vacuum High Viscosity Mixer Reactor with Double Hellical Agitator

HSM-40 Gallons

Stock # UR40ACO2

IN STOCK AS OF MARCH 16, 2021

1-USED ROSS APPROX. 40 GALLON VACUUM MIXER REACTOR EITH DOUBLE HELLICAL AGITATOR. UNIT HAS AIR/OIL LIFT MECHANISM TO RAISE AND LOWER THE DRIVE TO ALLOW THE REMOVAL OF THE MIX TANK. DESIGNED FOR OPERATION UNDER VACUUM & A POSITIVE PRESSURE OF 35 PSI @ 350°F, JACKET MAXIMUM ALLOWABLE WORKING PRESSURE 100 PSI @ 350°F. MINIMUM DESIGN METAL TEMPERATURE 0°F AT 100 PSI. ROSS METAL FABRICATORS S/N 11801-1, national board 463, CRN 15925. STAINLESS STEEL CONTACT PARTS. JACKETED HAS PROVISION FOR THERMOCOUPLE, INSULUATED WITH SHEATHING.

This item is in stock.

This can be a substitute for a double planetary mixer, this unit will handle many of the double planetary mixer applications and perform better in particular when top to bottom mixing is critical, this design can do it faster. Last used on an 800,000 cP product.

In-Line Ross High Shear Mixing System

Ross HSM-425

25 HP

Stock # URIL25AC01

IN STOCK AS OF MARCH 16, 2021

Description:

One only used Ross In-Line Ross High Shear Mixing System comprised of an in-line Ross Mixer Emulsifier, model HSM-425, driven by a 25 HP motor.  The system includes a stainless steel tank which is attached to the in-line high shear mixer. Rated for vacuum and pressure with.  The powder is added to the liquid stream and circulated through the tank and high-shear mixer in a loop and part of the stream is diverted away from the loop and into the next step of your process.  The unit can also be operated in a closed loop batch system.  This 25 HP unit has a flow through rate of 350 USGPM based on water.

Will sell in-line mixer-emulsifier or the jacketed pressure vessel by itself.

- Prior use is with a pharmaceutical company.

HMX Jacketed Tank with Inverted Anchor Agitator

Stock # UH55ACO1

IN STOCK AS OF MARCH 16, 2021

We are rebuiding three 225 gallon double planetary mixers. Two were sold and there is one left.

• Used 225 Double Planetary Mixer
• Stainless Steel contact parts

• Drive has a 40 hp motor

• A new control panel with VFD speed control

• The planetary gearbox will be disassembled and refurbished as required.
• Two rectangular profile mixing blades
• 225 gallon mixing capacity, jacketed with a discharge valve a required.

•Unitwill be reconfigured with a new hydraulic lift amd base.

•If needed, we can also supply new tanks and a discharge press.

Two units are sold and one is scheduled for remanufacturing.

MYERS Triple Shaft Mixer

Model V550/500EH-15-25

100 Gallon Capacity

Stock # UM100AFA01

IN STOCK AS OF MARCH 16, 2021

Used Myers triple shaft vacuum mixer, model V550/500EH-15-25:

• Approximately 100 gallo, 304 stainless steel tank, approximately 30" diameter x 36" straight side, dish top, flat bottom, vacuum rated internal, jacketed for 14 psi, dual post mounted with hydraulic lift pump, hp,

• 304 stainless steel product contact surfaces

• One high speed paddle blade driven by 25 hp motor

• One anchor agitator with bottom and sidewall scrappers driven by 15 hp motor

• XP rated motors, auxiliary shaft driven by same motor as anchor agitator (less mixing element), motor are mechanically variable speed

• Serial# 977, built 1988

Ross Dual Shaft Mixer

CDA-200 Gallons

Stock #

UR200AFA01

SOLD, WE WANT TO BUY YOURS

Used Ross, Model CDA-200 Gallon Dual Shaft Mixer:

• 200 Gallon working capacity, 250 full holding

• Designed for operation under vacuum.

• Mounted on a steel base with a hydraulic lift system.
• Type 304 Stainless Steel contact parts

• Two wing anchor agitator with scrapers side & bottom, 10 hp 230/460 Volt motor, speed control via a VFD drive.

• High speed disperser driven by a 20 HP, 230/460 volts motor with VFD speed control.

• Agitator shafts have mechanical seals

• Includes a control panel.

• Mixer comes with one mix can with a 50 PSI steel jacket on the side and bottom. Fitted wit a 2" bottom outlet near the front of the mix can.

200 Gallons BV Speciaal Roestvrijstall Industrie Dual Shaft Mixer

Stock #

UBVSRI200AFA01

IN STOCK AS OF MARCH 16, 2021

200 gallon BV Speciaal Roestvrijstall Industrie twin motion kettle:

• Stainless steel construction

• Approximately 39" diameter x 30" straight side

• Removable dish top & hemispherical bottom

• Internally rated for 58.8 psi and full vacuum at 284 º F

• Jacket rated for 58.8 psi and full vacuum at 284 º F

• Centrally mounted top entering anchor agitator with sidewall scrappers, driven by a 7.5 hp, 230/460 volt motor

• Top entering & off center high speed dispersion blade, driven by a15 hp, 230/460 volt

• Serial # 02892396A, national board# 195, built 1989.

200 Gallons BV Speciaal Roestvrijstall Industrie Dual Shaft Mixer

Stock #

UBVSRI200AFA02

Two units available as of March 16, 2021

200 gallon BV Speciaal Roestvrijstall Industrie twin motion kettle:

• Stainless steel construction

• Approximately 39" diameter x 30" straight side

• Removable dish top & hemispherical bottom

• Internally rated for 58.8 psi and full vacuum at 284 º F, Jacket rated for 58.8 psi and full vacuum at 284 º F

• Centrally mounted top entering anchor agitator with sidewall scrappers, driven by a 7.5 hp, 230/460 volt motor

• Top entering & off center high speed dispersion blade, driven by a15 hp, 230/460 volt

• Serial # 02892396B, national board# 195, built 1989.

225 Gallons

Ross Type Double Planetary Mixers

Three units with two sold and one still available

Stock #

UR225AC03

IN STOCK AS OF MARCH 16, 2021

We are rebuiding three 225 gallon double planetary mixers. Two were sold and there is one left.

• Used 225 Double Planetary Mixer
• Stainless Steel contact parts

• Drive has a 40 hp motor

• A new control panel with VFD speed control

• The planetary gearbox will be disassembled and refurbished as required.
• Two rectangular profile mixing blades
• 225 gallon mixing capacity, jacketed with a discharge valve a required.

•Unitwill be reconfigured with a new hydraulic lift amd base.

•If needed, we can also supply new tanks and a discharge press.

Two units are sold and one is scheduled for remanufacturing.

Ross Versamix Tripple Shaft Mixer

PVM-500 Gallons

Stock #

UR500AC01

IN STOCK AS OF MARCH 16, 2021

Description: Used Ross PVM-500 Triple Shaft Mixer.

The mixer was in working condition when it was removed from the plant.

This mixer was new in about the mid 1990s, serial number 65286, but it has been in storage for about 5 years.

There is product residue and some debris inside the mix tank but that will be cleaned prior to shipping.

The unit was disassembled to be removed from the plant and it was stored disassembled. The drive belts are missing and there is no control panel, but otherwise all the components seem to be there.

The mix tank is all stainless steel and it has a 50 PSI jacket and a 4" flush ball valve on the bottom of the tank near the front.

The two high-speed dispersers have 40 HP motors, and the anchor agitator has a 25 HP motor.

In Stock

Components & Tanks for Ross Mixers

We currently have in stock used tanks for Ross mixers in the following sizes:

1, 2, 4, 10, 40 and 200 gallons.

We also have dust shields for 4 and 10 gallon Ross mixers..

We can fabricate new tanks and discharge presses as well. Inquire for details

Need a break? Click here to view an entertaining video

Jim, click the following for your inspection videos: Video 1Video 2 Video 3

Gabriel Tries Pepsi for the First Time Video
