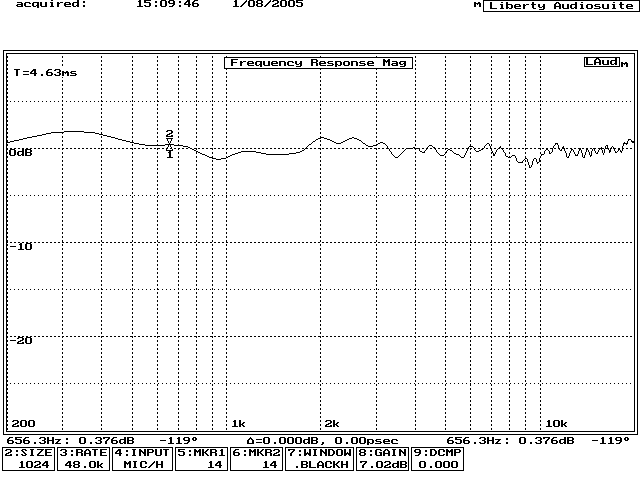

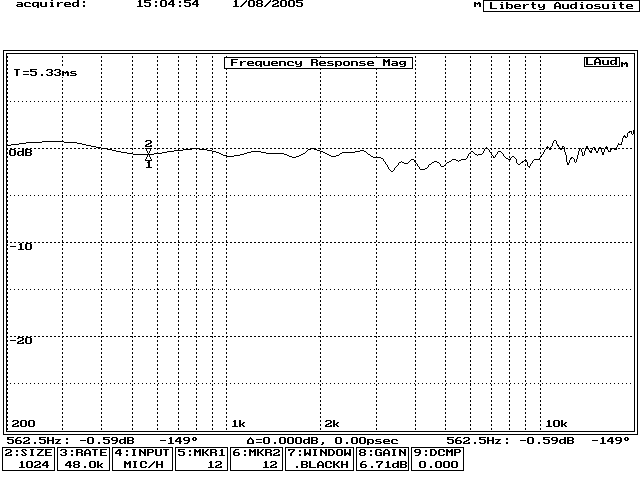

These measurements were made by Dennis Murphy
using the SeasW15/Raven R1 in combination with his MBOW 3-Way
Peerless 10" in a 2 cu ft cabinet. Dennis says that the 2-Way plot
is very similar but it currently is not available so this plot is
included to give some idea of the frequency response of the speakers.
Dennis Murphy has finished and tested the 3-Way crossover design but the
bass cabinet has not yet been completed by the author.
Impedance Curve for 2-Way
|
