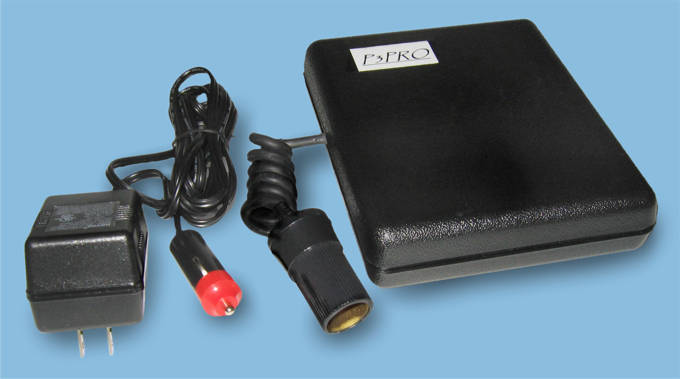

Nickel Cadmium (NiCad) Battery Belt

• Ideal for powering 12 Volt lights for video & television or other devices.
• Powers 50 Watt light for about an hour.
• Wide operating temperature.
• Good value.

Power Capacity

Nominal 12 Volts.

At least 4.5 Amp/hours (4,500 mAh) (54 Watt/hours).

Powers 25 Watt light for about 2:10 hours.

Weight

Battery pack weighs 3.76 pounds (1712 grams) + belt.

Batteries

Uses French Saft brand quality cells. Wide operating temperature -40°C to 60°C
(-40°F to 140°F).

>> Simple tech specs (pdf)

Belt & Case

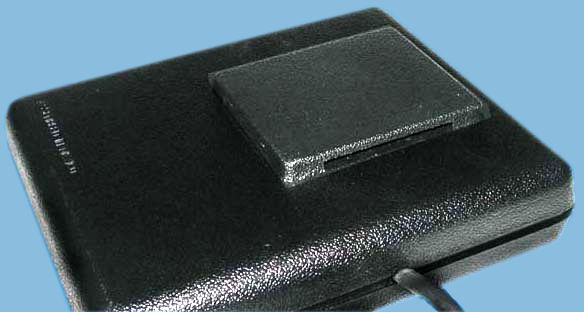

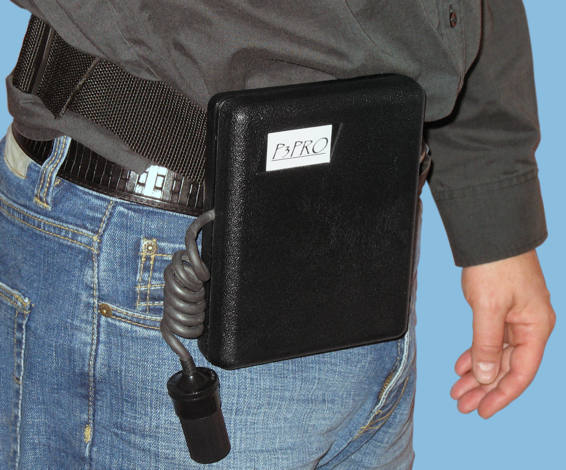

Has 5 cm (2") slot on back of battery to feed your belt through.

Includes nylon belt (not shown) 0.27 pounds (122 grams).

High impact plastic case.

Connector

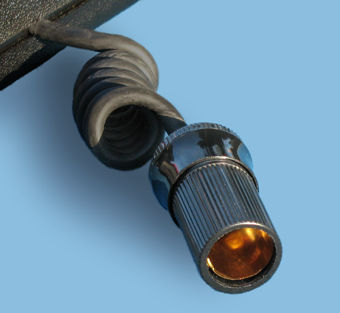

Comes with cigarette type connector.

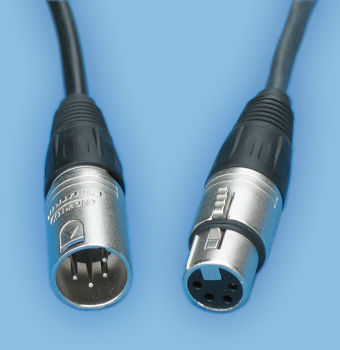

Optional 4-pin XLR connector on charger and battery for $20. CDN.

Optional Conversion Cable

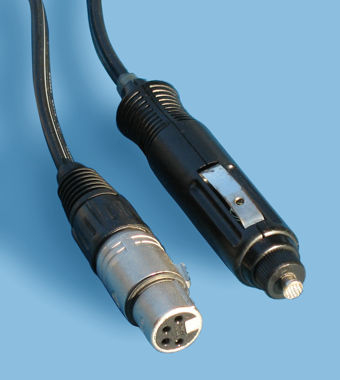

Optional male cigarette to female 4-pin XLR converter cable for $20. CDN.

Charger

Includes separate slow charger (14 hours) for 115 VAC 0.83 pounds (375 grams).

Optional Fast Chargers

3 stage AC/DC digital switch mode chargers that can be used anywhere in the world (90-264 VAC, 50-60 Hz)

Only 1 fast charger is required whether you buy 1 or several batteries, thereby saving cost.

These chargers are double insulated & meet CE hospital environment requirements EN60601-1. Has –dV cut off & timer for safety.

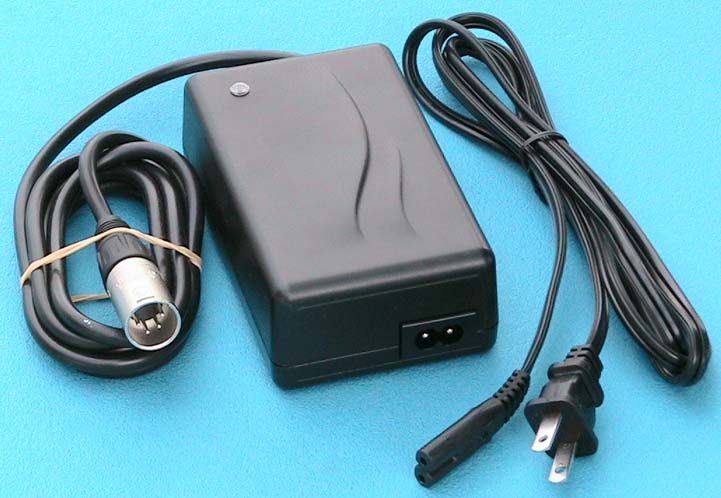

Mascot 2415 charger	Mascot 2215 charger

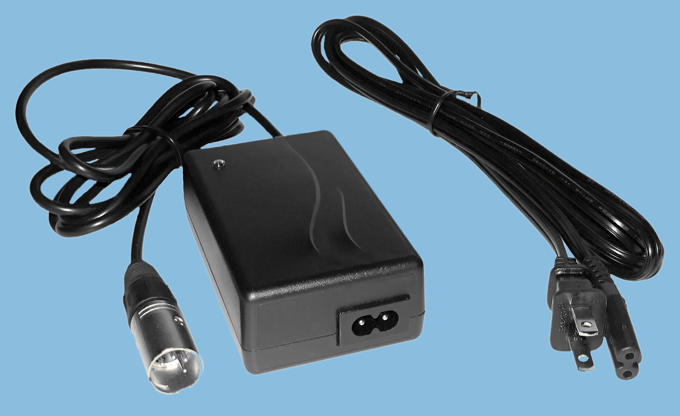

Large smart/fast Mascot 2415 charger >> Manufacturer's brochure (pdf)	Medium smart/fast charger Mascot manufacturer's brochure 2215 or 2216 (pdf
PRICE $180. CDN	PRICE $150. CDN
50 Watt (3 Amp)	25 Watt (1.5 Amp)
It will charge the NiCad1245 battery in about 1.5 hours + top off time.	It will charge the NiCad1245 battery in about 3 hours + top off time.
Weighs 1 pound (454 grams).	Weighs 0.55 pounds (250 grams).

Optional Voltage Converter

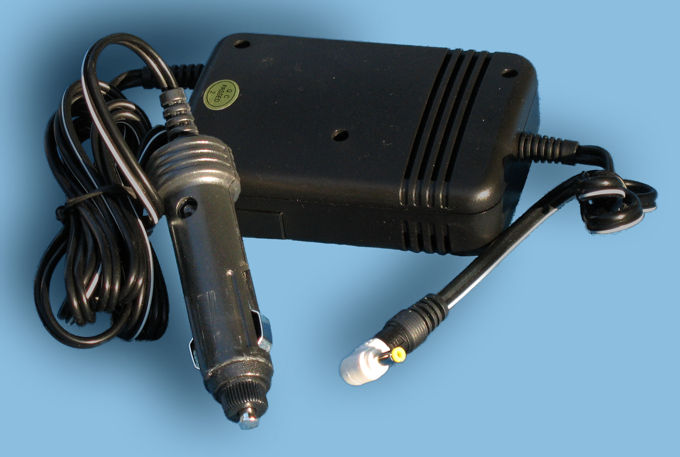

Converts 12 Volts DC to 7.2 Volts DC for some Panasonic DV Camcorders, $60. CDN

Warranty

Includes one year warranty on parts & labour for manufacturing defects (exclusive of shipping).

Shipping

Shipping weight 5.44 pounds (2470 grams).

Price

Battery Belt model NiCad1245 Price $160. CDN

For exact currency exchange rates accurate as of yesterday's cheque rates, please check  http://www.royalbank.com/travel/fxconvert.html

Notes

How Batteries Work: Technical information on several types of batteries and chargers.
