The following tanks and reactors are available from a dairy that replaced them wth larger tanks to increase capacity. |
Item # |
Description |
Photo |
|
||
|
||

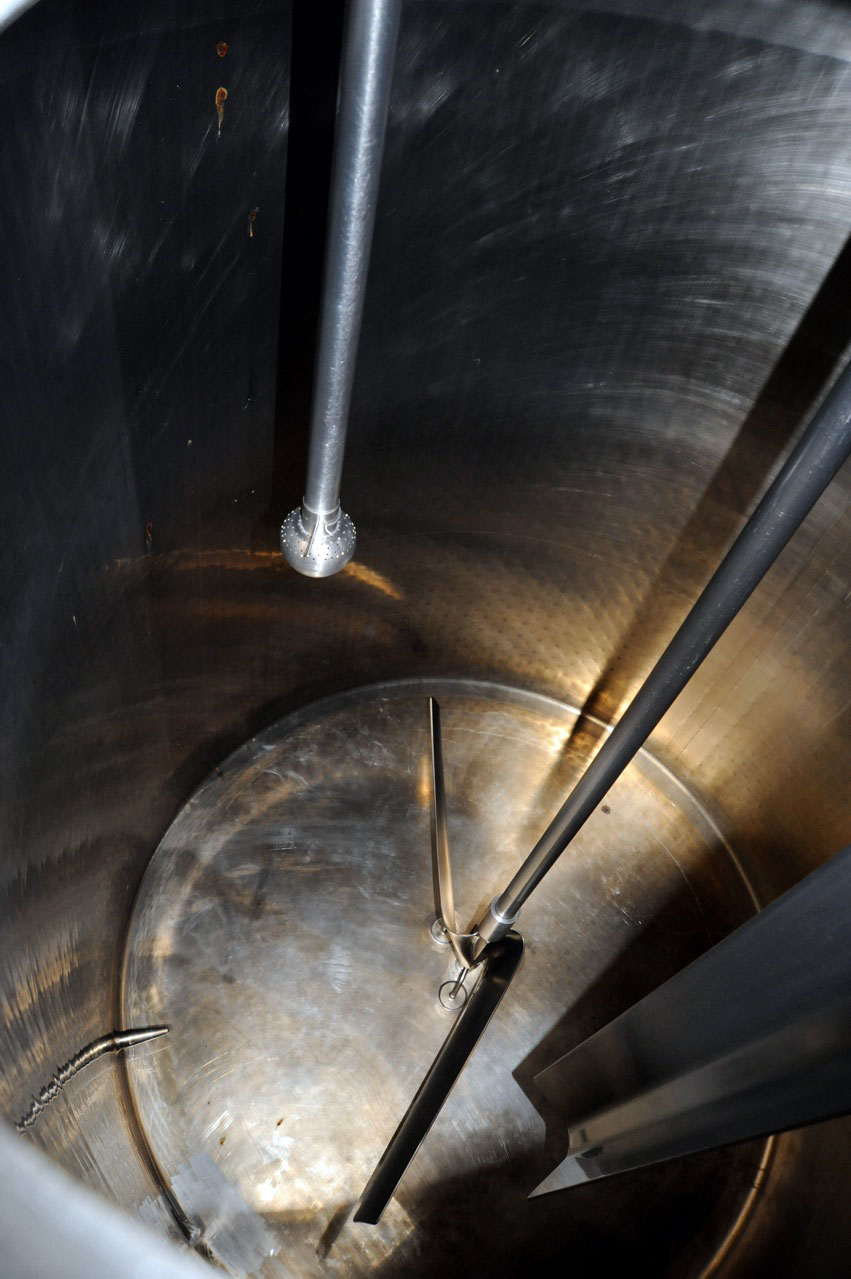

| 304SST1000A | 1,000 US Gallon, 304 SS Dimple Jacketed Tank Note that all measurements are to be considered approximate. ID: 66” OD: 74” Overall Height: 12’ Including Agitator Bottom: Flat Top: Dished Bottom Outlet: Approximately 2” Top Opening with Hinged Cover: 17” Ø Inlets: On top CIP: spray ball at approximately mid level Agitator: Top entering drive with a shaft approximately 2” Ø carrying a large (approximately 50” Ø) pitched blade impeller located near the bottom. There is a baffle to prevent vortexing welded to the top of the tank. Approximate volume: 1,000 US Gallons Product contact parts are 304SS. Jacket: Dimple jacket with a MAWP 75 PSIG at 250°F Insulation: the tank appears to be insulated since there is stainless steel sheathing on the outside. Tank Rating: Atmospheric pressure at 212°F Manufactured by A-L Stainless, Peterborough, ON, CANADA Serial Number; 871408 Prior Use: Dairy Price, as is, FOB Ontario, Canada.....$19,500.00 |
|
2,000 Callons 304SST2000A |
Description: 8,000 Liter Jacketed Tank Manufactured by Tri-Canada Inc., S/N 90813, Made in Canada Price, as is, FOB London, ON....$22,800.00 |
|
3,000 Callons 304SST3000A |
Walker Stainless Equipment Company tank formerly used in a dairy. Jacket rated for 150 PSIG MAWP at 300 °F Jacket Minimum Design Metal Temperature: -20°F at 150 PSI Vessel designed for 50/-15 PSIG MAWP AT 300 °F Vessel Minimum Design Metal Temperature: -20 °F at 50 PSI Serial Number HHTA-6547-R BUILT IN 1997 Capacity: 3000 Gallons (Size to be confirmed) Material: SA240/T-304 Model: FDB 00547 Dwg: A1608 CRN NO. L2691-5 NAT’L BD 26 Price, as is, FOB London, ON.....$19,500.00 |
|
3,600 Callons 304SST3000A |
All measurements are to be considered approximate:
|
|
